Lens

Order number

Angle of view
(diagonal, horizontal, vertical)

Optical design Distance setting Aperture

Bayonet
Filter thread
Lens hood
Dimensions and weight

LEICA SUMMARIT-M 75 mm f/2.4 Technical Data.

Illustration 1:1

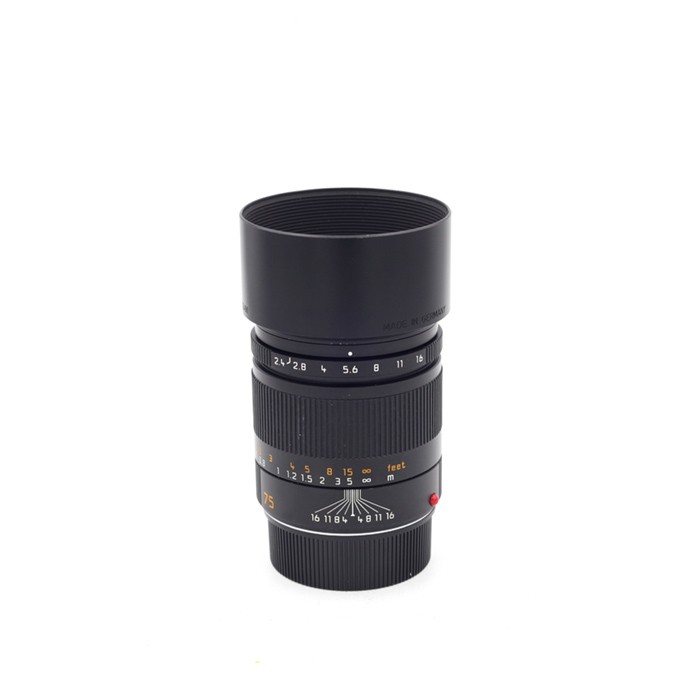

Leica Summarit-M 75mm f/2.4

Black anodized: 11682 Silver anodized: 11683

For 35 mm (24 x 36 mm): 32°/27°/18°;
for M8 (18 x 27 mm): 24°/20°/14°, equivalent focal length of approx. 100 mm

Number of elements/groups: 6/4
Position of entrance pupil in front of the bayonet: 25.26 mm Focusing range: 0,7m to infinity

Scala: combined meter/feet-increments
Smallest object field: for 35 mm: 173 x 260 mm, for M8: 178 x 268 mm Largest reproduction ratio: 1:7.2

Setting/type: click stops, half steps Smallest aperture: f/16
Number of aperture blades: 11

Leica M quick-change bayonet E46
Screw-on

Length: approx. 60.5 mm (without lens hood)
Diameter: approx. 55mm/59mm (without/with lens hood) Weight: approx. 325 g/350 g (without/with lens hood)
